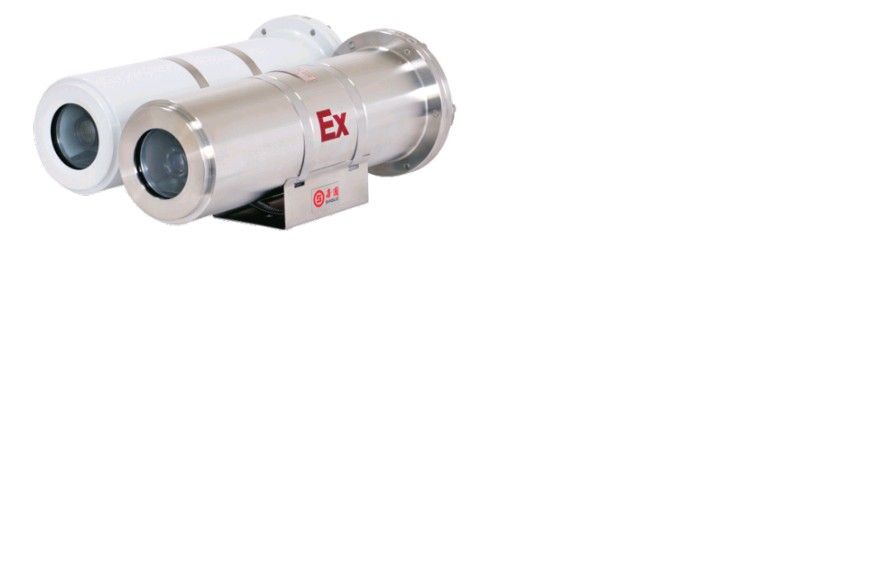

EXPLOSION-PROOF MINI CAMERA SGC-EX-MSD

Model

SGC-Ex-MSD

Certificate

ATEX

Marking

Ex II2G db IIC T6 Gb

Ex II2D tb IIIC (85°C) Db

Mechanical features

Material

304 Stainless Steel (316/316L optional)

Surface treatment

Stainless Steel Original Color

Ingress protection

IP68

Method of installation

Celling type & Wall Mounting

Electrical features

Power supply

DC12V

Working Current

≤1A

Camera

Image Sensor

1/2.5” progressive scan high sensitivity CMOS sensor

Lens

4/6/8mm lens optional

Resolution

2MP IP/AHD/CVI/TVI

Signal-to-Noice Ratio

＞52db

Min.Illumination

0Lux(infra-red o­n)

Infrared

Distance

15~25m

Wavelength

850nm

On/Off

Auto(≤10Lux)

Electrical connectivity

Composite Cable

Environmental

Rated temperature

-30℃~+70℃

Atmospheric pressure

80~106Kpa

Relative humidity

≤95%RH(±25℃)
