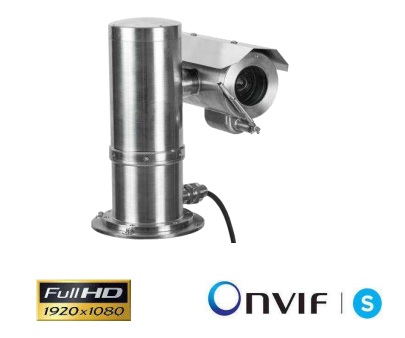

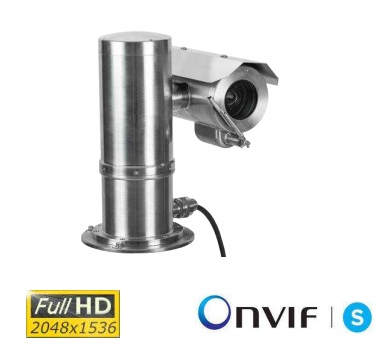

CAMERA PTZ CHỐNG CHÁY NỔ ASP851

Model

ASP851

Mechanical

Construction

316L Stainless Steel

Finishing

Polished

Window

Tempered Glass

Window Glass Thickness

12 mm

Pan Movement

360° Continuous Pan Rotation

Vertical Tilt

+90° ~ -90° Unobstructed

Pan Speed

0.1°/S ~ 40°/s

Tilt Speed

0.1°/S ~ 30°/s

No. of Cable Entries

1

Cable Entry Size/Thread

M25/1.5

Mounting

Base (Standard) or Wall (Optional)

ELECTRICAL

Input Voltage

100 ~ 240VAC 50/60Hz (Standard) / 24VAC (Optional)

Input Voltage Range

±10%

Power

75W

Pigtail

3 meters 6 core (power, video, data) Non-armored composite cable

COMMUNICATION

Communication

RS-485

Communication rate

2400 / 4800 / 9600 / 19200 bps

Protocol

Pelco D / P

Preset

256

Preset Accuracy

±0.1°

Video Output

1.0Vp-p / 75Ω

ENVIRONMENT

Air Pressure

80 ~ 120KPa

Temperature

-40°C to +60°C

Humidity

≤95%RH (+25°C)

WEIGHTS

Net weight (without bracket)

24 Kg

Net weight (bracket)

8 Kg

OPTONAL ACCESSORIES

Wall mount bracket

Weatherproof Stainless Steel 316L Termination box

10-Litres Stainless Steel 316L Manually Pressurized Washer system

CAMERA

Image device

Sony 1/4 〞Ex-view HAD CCD

Wide dynamic range

Yes

Progressive scanning

Yes

Effective pixels

752 (H) x 582 (V)

Synchronization system

Internal / External

Video output

VBS 1.0Vp-p/75Ω

White balance

Auto / Manual / Indoor / Outdoor / Auto-tracking / o­ne click

Scanning frequency

15.625KHz(H) 50Hz(V)

S/N Ratio

>50dB

Horizontal resolution

550TVL

Electronic shutter

1/1 ～1/10,000s

Focus & Iris

Auto / Manual

Minimum illumination

1.4Lux

Focal Length

F = 3.4 mm (wide) to 122.4 mm (tele)

F1.6 to F4.5

Zoom Ratio

Total:

432X

Optical:

36X

Digital:

12X
