BỘ LẶP DỮ LIỆU RS-422/485 CÓ CÁCH LY QUANG ĐIỆN

Product name

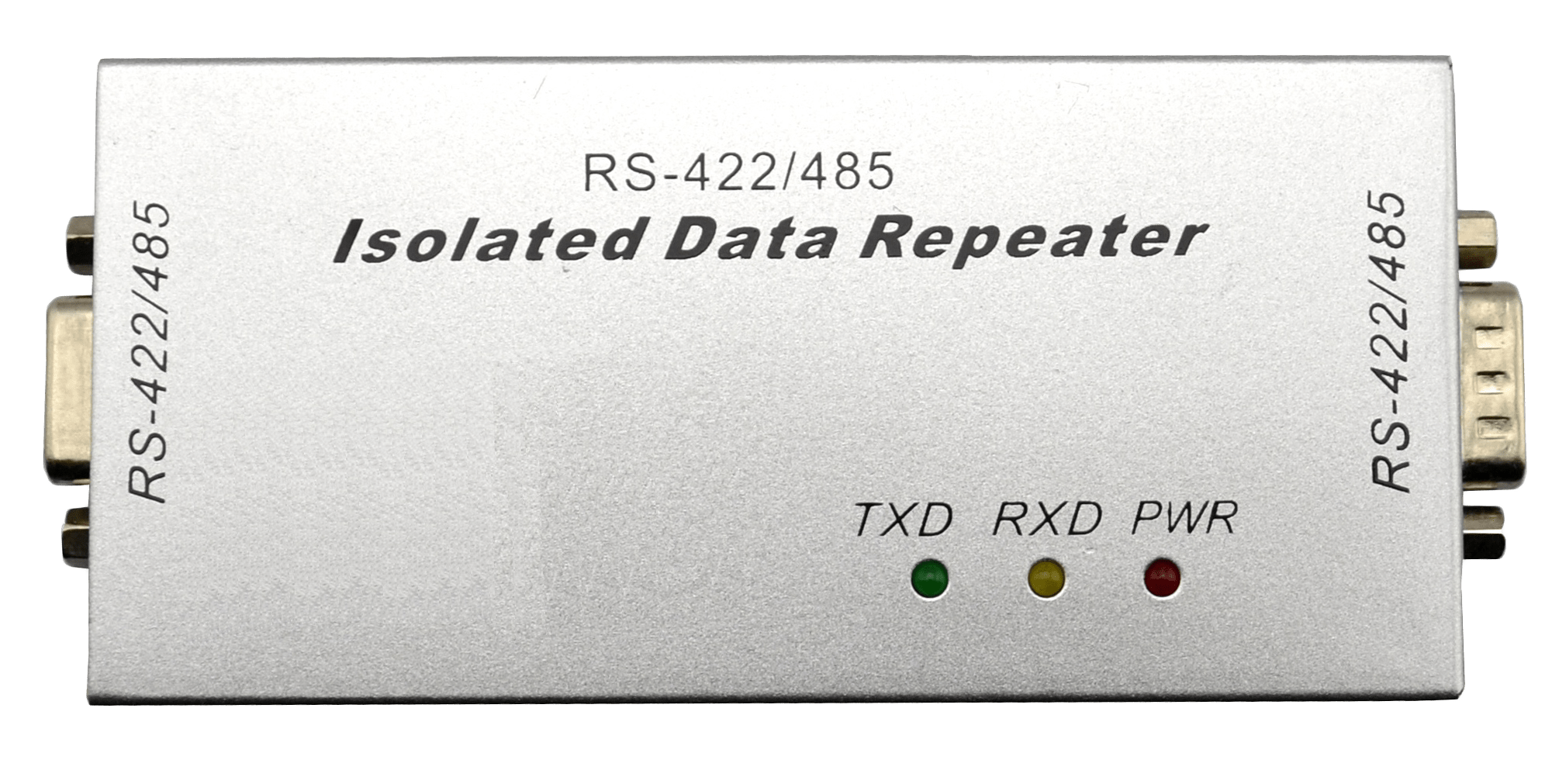

Full metal housing, anti-static, powerful anti-jamming capacity RS-422/485 Photoelectric Isolation Data Repeaters

Feature

·Extend the communication distance of RS-422/RS-485 bus network
Increase the number of RS-422/RS-485 bus network device
Automatic data direction control, zero-latency design
Photoelectric isolator and DC/DC module, can offer 3500V isolation voltage and effectively prevent lightning strike and common code interference
High efficiency lightning protection tube can effectively inhibit lightning and ESD, and offer 1000W lightning strike & surge protection power o­n each line.
Can greatly enhance the credibility of the whole RS-422/485 network
Full metal housing, anti-static, powerful anti-jamming capacity

Specification

Interface feature: interface is compatible with EIA/TIA RS-485/RS-422 standard

Electric interface: RS-422/RS-485 interfaces are DB9 interfaces

Transmission media: twisted-pair cable or shielded cable

Working mode: asynchronous half or full duplex

Signal indication: 3 signal indication lights indicate TXD, RXD and PWR

Isolation: isolation voltage 3500VRMS 500VDC sequence

Transmission speed: 115.2K BPS to 1.2KM

38.4K BPS to 2.4KM
9600 BPS to 5KM

Protecting grade: RS-422, RS-485 interface 1000W lightning strike and surge protection o­n each line

Extended distance: 0-5 kilometers
(115200-9600BPS)

Size: 125mmx54mmx25mm

Working environment: -25℃ to 70℃,  5% to 95% relative humidity

Ordering information

AN-DR-RS-422-485

Full metal housing, anti-static, powerful anti-jamming capacity RS-422/485 Photoelectric Isolation Data Repeater
