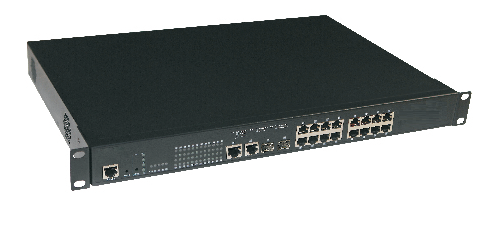

SWITCH POE 16 CỔNG / 16 PORT POE SWITCH

Connector Type

16x 10/100Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX,

2x Gigabit Combo port

Network Media

100Base-TX (≤150 meters, Cat 5 cable), 1000Base-FX

Bandwidth

8.8Gbps

Address Database Size

96KB

MTBF

100,000 hours (about 10years)

Network Latency

Switch Throughput:6.5Mpps@64Bytes

Forwarding Mode

Store-And-Forward Architecture

Buffer Memory

8M

Network Protocols

IEEE 802.3i 10BASET; IEEE 802.3u; IEEE 802.3x; IEEE 802.3z Flow

Control IEEE 802.1af DTE Power via MDI; IEEE 802.3af

LED Display

Power, Ethernet Data, PoE working status

Power Supply

Built-in Power (Input:AC100-240V 50/60Hz, Output:52V 8.5A)

PoE Ports

1-16 Port support PoE

PoE Port Power

15.4Watts per port

PoE Standard

IEEE802.3af

PoE Feature

Automatic identification AF/AT

Power Consumption

260W

Working Environment

Working temperature:-20°～ 55°C , Storage temperature: -40°～ 85°C,

Working Humidity: 5%～95%, non-condensing

Certification

FCC Class A, CE, RoHS

Radiation

No

Transmission Distance

Ethernet RJ45+POE：100M;Single Fiber 20KM

Power Supply Type

1/2+、3/6- （End-span）；Optional order 4/5+、7/8- (Mid-span)

QoS

Yes

NMP

No

VLAN

No

Product Size

440 X 275 X 44.5mm, 4.9kg
