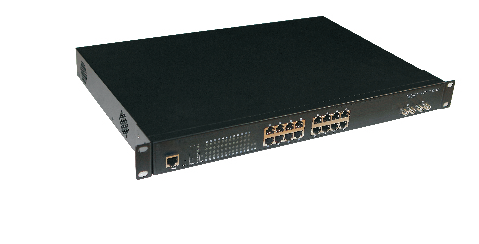

SWITCH POE 16 CỔNG GIGABIT / 16 PORT GIGABIT POE SWITCH

Connector Type

16x 10/100/1000M copper cable RJ45 PoE ports(All ports support MDI/MDIX automatic adjustment); 2x 10/100 /1000Mbps SFP fiber uplink ports

Network Media

10BASE-T: Cat3,4,5 UTP(≤100 meters); 100BASE-TX: Cat5 or more UTP

(≤100 meters); 1000BASE-TX: Cat5 or more UTP(≤100 meters)

Bandwidth

52Gbps

Address Database Size

8000

MTBF

190,000 hours (about 21 years)

Network Latency

less than 20 microsecond

Forwarding Mode

1000M line speed forwarding; Packet Length: 10K; Packet Buffer: 4.1M

Buffer Memory

96KB

Network Protocols

IEEE 802.3; IEEE 802.3u; IEEE 802.3ab; IEEE 802.x Flow Control;

IEEE 802.1af DTE Power via MDI

LED Display

Power, Network, PoE working status

PoE Ports

IEEE 802.3af, each port power is 15.4W; Port1 to Port16 support PoE power; The even number Port(1/3/5/7/9/11/13/15) is end-span(1/2+, 3/6- line pair)  power supply, the odd number port(2/4/6/8/10/12/14/16) is mid-span(4/5+,

7/8- line pair) power supply

PoE Port Power

Port output power is 15.4W (IEEE802.3af)

PoE Standard

IEEE802.3af standard, each port power is 15.4W, total power is 260W

Working Environment

Working temperature:-20°～ 55°C , Storage temperature: -40°～ 85°C,

Working Humidity: 5%～95%, non-condensing

Radiation

CE mark, commercial ; FCC Part 15 Class B; VCCI Class B; EN 55022

(CISPR 22), Class B

Product Size

440 x 275 x 44.5mm
