SH10 EXPLOSION PROOF CAMERA WITH WIPER
|
|
|
|
| Mã sản phẩm: SH10 |
| Hãng: SAKIA |
| Giá: Liên hệ |
|
|
|
|
|
|
|
Certificate Certificate Mark | ExdⅡC T6 GB/DIP A20 TA, T6 | Certificate No | CNEx15.1299 | Standards | Q/21392SH10-2015 |
Mechanical Housing | Stainless steel 304 or 316L | IP68 | IP68 | Cable thread hole | 2pcs G3/4 or NPT3/4 | Sun-shield | Yes | Wiper | Yes |
Electrical Voltage | AC85V～AC265V or DC24Vor AC24V | Power | 15W/25W (with thermostat) | Surge Protect | Optional, TVS6000V surge protect | Optical Fiber output | Optional, multimode or single mode |
Ambient Ambient temperature | -25 to +60℃ / -45 to +80℃ | Air pressure | 80Kpa to 106Kpa | Relative Humidity | ≦95% (no condensation) |
Communication Communication | support analog video output | 485 Communication | Support Pelco-D, Pelco-P | Communicate Rate | 2400 to 19200bps |
Camera Image Sensor | 1/3" interline-transfer CCD | Effective pixel | PAL 976*582 NTSC 976*494 | Min. Illumination | Color 0.04Lux B/W: 0.004Lux | Shutter Time | 1/50(1/60) sec~ 1/10,000 sec | Day&Night | Auto ICR | Horizontal resolution | 700TVL (color), 720TVL (B&W) | S/N ratio | ＞50dB（AGC off） |
Lens Focal Length | 4-92mm, 23X/or 36X optical | Aperture Range | F1.5-F3.6 | Angle of View | 49-2.2 degree(Wide-Tele) | Min. Working Distance | 10mm-1500mm(Wide-Tele) | Zoom Speed | Approx. 3s(Optical, Wide-Tele) |
Control Camera address | on/off （0-254） | Focus Mode | Auto/Manual/One touch | Gain | off/ lower/ higher | Slow shutter | X256 MAX | White Balance | Auto white balance 1/auto white balance 2/Manual/auto | Private | Off/ Mode 1/ Mode 2 | Video | 3D DNR, mirror, brightness, Contrast, Sharpness adjustable | Digital zoom | X16 | Zoom display | on/off | ZCF control mode | mode 1, mode 2 | RS485 | protocol, baud rate, address |
General Cable | integrated cable | Size | 472*195*194mm | Weight | 9.5kg | Mounted | wall, pole | Wall bracket | SP16 |
|
|
|
| CÙNG THỂ LOẠI |
Dual layer stainless steel housing with water inlet and outlet for water cooling AISI304/AISI316L stainless steel construction Multiple Power: 24V AC, 24V DC ,220VAC POE Air inlet at front cover for blowing compressed air at sight glass
|
|
Integrated with IR illuminator AISI304/AISI316L stainless steel construction Multiple Power: 24V AC, 24V DC ,220VAC POE Optional with wiper and sunshield Widely used in petrochemical industry, and military industry, etc
|
|
Optional with wiper and sunshield • AISI304/AISI316L stainless steel construction • Strong protection against the elements for most climates • Multiple Power: 24V AC, 24V DC ,220VAC POE • Optional IR illuminator and washer system • Optional integrated with thermostat or heater • Widely used in petrochemical industry, and military industry, etc
|
|
Support analog video output 700TVL (color), 720TVL (B&W) Min. Working Distance:10mm-1500mm(Wide-Tele) 421*155*185mm/1.8kgs Product description: SH12B Explosion Proof Camera
|
|
AC85V～AC265V or DC24Vor AC24V 30m infrared lights Support analog video output 313*140*145mm/5.5kgs Product description: SH13 Explosion Proof Infrared Camera
|
|
Effective pixel:1.3MP, 2MP, 3MP -25 to +60℃ IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP 390*163*170mm/1.5kgs Product description: SH15 Explosion Proof Camera
|
|

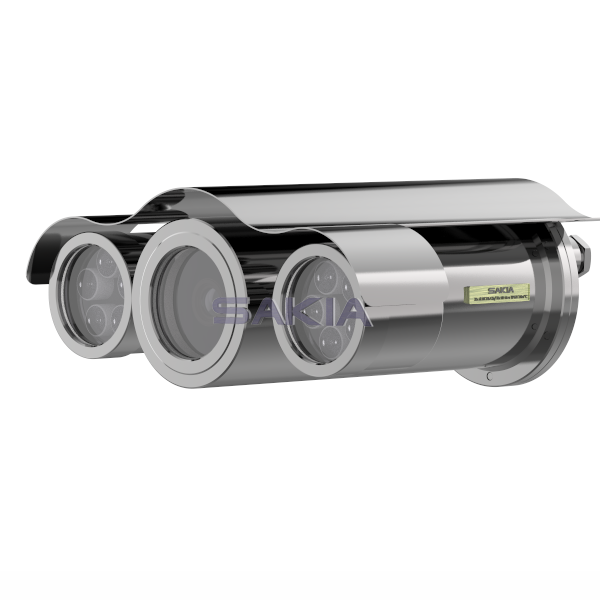

-25 to +60℃ / -45 to +80℃ 30m infrared lights Support analog video output 367*335*170mm/13.9kgs Product description: SH19 Explosion Proof Infrared Camera
|
|

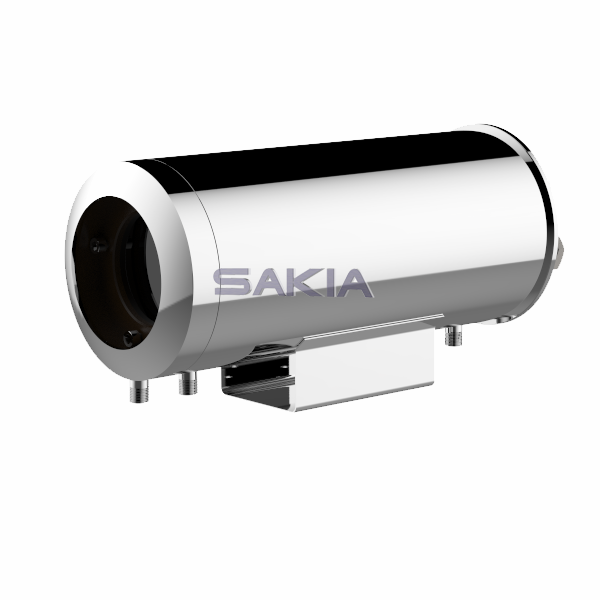

AC85V～AC265V or DC24Vor AC24V Air cooling -25 to +150℃, water cooling 0 to +250℃ Housing inner size: 260*80*80mm Weight: 6.1KGS Product description: SH35 Air Water Cooling Explosion Proof Camera Housing
|
|
