SP15 EXPLOSION PROOF MONITOR
|
|
|
|
| Mã sản phẩm: SP15 |
| Hãng: SAKIA |
| Giá: Liên hệ |
|
|
|
|
|
|
|
Certificate Certificate Mark | ExdⅡB T6 Gb / DIP A20 TA, T6 | Certificate No | CNEx13.4984 | Standards | Q/21392SP159-2013 |
Mechanical Housing | Stainless steel 304 or 316L | IP | IP66 | Cable thread hole | 1pcs G3/4 or NPT3/4 |
Electrical Voltage | AC85V～AC265V or DC24Vor AC24V | Power | 50W | Surge Protect | Optional, TVS6000V surge protect |
Ambient Ambient temperature | -25 to +60℃ / -45 to +80℃ | Air pressure | 80Kpa to 106Kpa | Relative Humidity | ≦95% (no condensation) |
Function Dot Pitch | 0.24825mm*0.24825mm | Resolution | 1920*1080P | Brightness | 300cd/m2 | Contrast | 1000:01:00 | Response Time | 14ms (G. To G) | Color | 16.7M | Line Frequency | 31.5-60KHz | Field Frequency | 56-75Hz, Flick-free | View Degree | Horizontal 176° | Connector Port | VGA,or BNC, S-VHS, RGB, CVBS |
General Cable | integrated cable | Size | 473*200*396mm | Weight | 28kg | Mounted | desk |
|
|
|
| CÙNG THỂ LOẠI |
AISI304/AISI316L stainless steel construction Strong protection against the elements for most climates Anti-corrosive and protection against harsh environment Optional integrated with thermostat or Heater Degree of protection: IP66 Category: suitable for Zone 1 - 21 (gas) and Zone 2 - 22 (dust) Impact and breakage resistant
|
|
16CH RS485 VGA HDMI Product description: SXR05-16 16 CHANNEL AHR
|
|
Stainless steel 304 or 316L Max Loading:100kgs Weight:4.5kgs Fit:SS11，SS12 Product description: SP20 Wall Bracket
|
|
Stainless steel 304 or 316L Max Loading: 20kgs Weight: 1.6kgs Product description: SP17 Wall Bracket
|
|
Stainless steel 304 or 316L Max Loading: 100kgs Weight: 2.8kgs Fit: SH10,SH11,SH12,SH13,SH14,SH15 Product description: SP16 Wall Bracket
|
|
Cable thread hole:6pcs G3/4 or NPT3/4 RS485, Support Pelco-D, Pelco-P -25 to +60℃ / -45 to +80℃ 300*170*255mm/15kgs Product description: SP14 Explosion Proof Controller
|
|

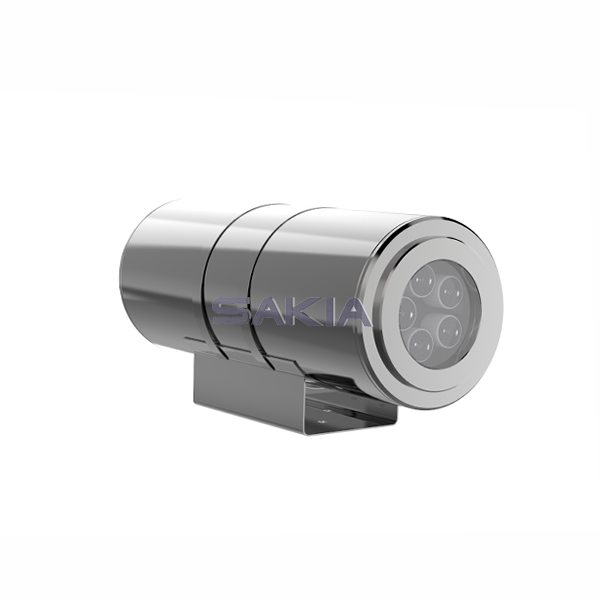

IP68 Cable thread hole:1pcs G3/4 or NPT3/4 -25 to +60℃ / -45 to 80℃ 267*128*150mm/5.1kgs Product description: SP13 Explosion Proof Infrared Lights
|
|
Connector size: G3/4 IP68 -25 to +60℃ Length: 1m, 1.5m, 2m Product description: SP12 Explosion Proof Flexible Tube
|
|
