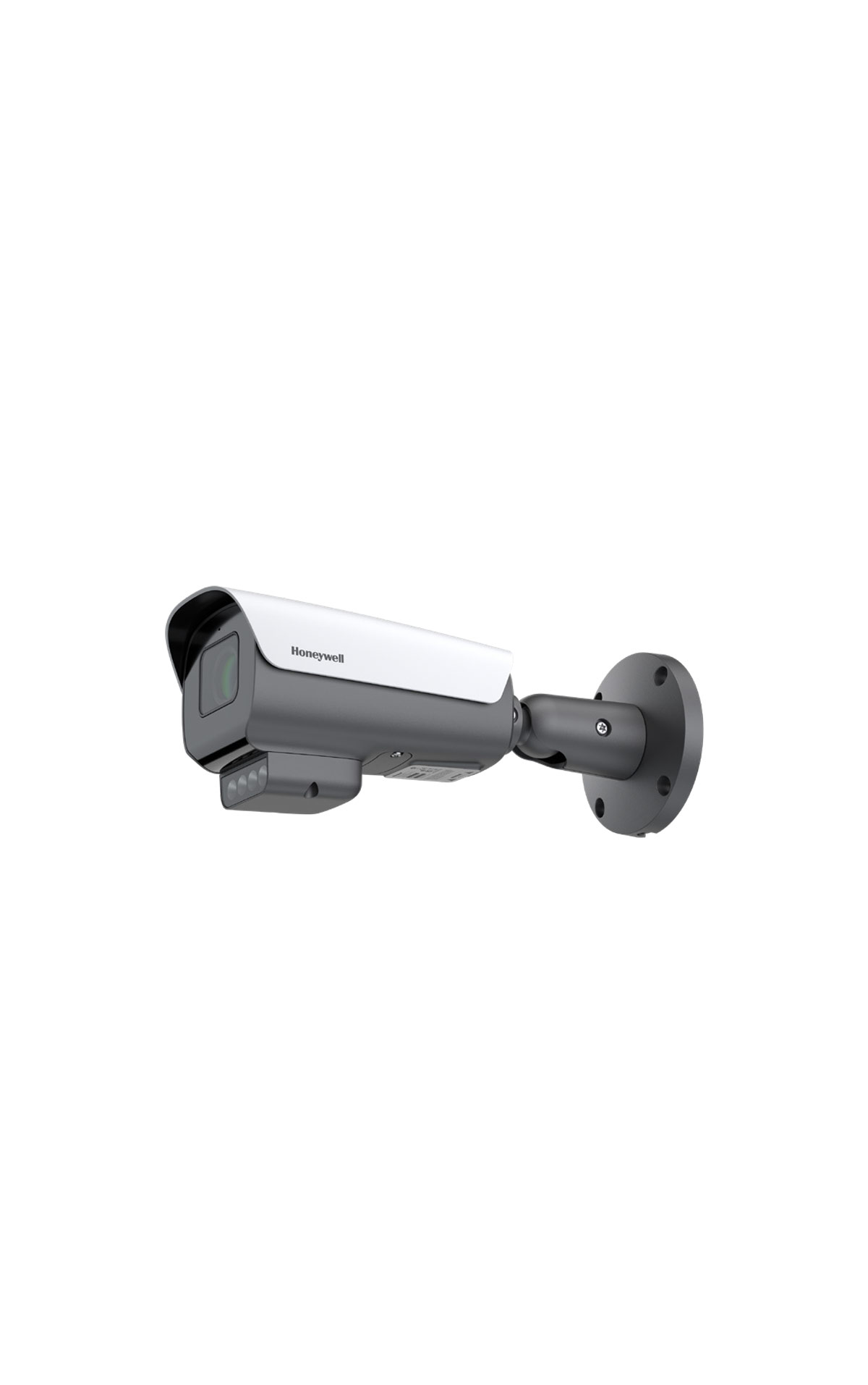

HC35WB8R5 - 8MP IP WDR IR BULLET CAMERA

Model

HC35WB8R5

OPERATIONAL

Video Standard

NTSC/PAL

Scanning System

Progressive

Image Sensor

1/1.8” CMOS

Sensor Size (H x V)

7.904 mm x 4.64 mm

Number Of Pixels(H x V)

3840 x 2160 px

Minimum Illumination (Color/BW)

0.007lux@F1.6 (Color, 30IRE ), 0 Lux / F1.6 (IR o­n)

S/N Ratio

55 dB

Electronic Shutter Speed

1/1 ~ 1/64,000

IR Distance

100 m

IR Light Control

Smart IR (Auto / Manual) / OFF

IR Light Number

6

Removable IR-Cut Filter

Yes

Day/Night

Auto (ICR) / Color / BW

Backlight Compensation

WDR, BLC, HLC

White Balance

Auto / Fixed Current / Manual

Gain Control

0~100%

Wide Dynamic Range

130 dB

Noise Reduction

3D DNR

Lens

8-32mm, P–lris

Digital Image Stabilization

Yes

Angle Of View (H x V x D)

H:41.8°(W)-14.9°(T), V: 22.9° (W) ~8.5°(T), D: 48.7° (W) ~17.1°(T)

Privacy Masking

Off / o­n (4 Areas)

Defog

Support

Encryption Chipset

Hardware embedded

Local Storage

Micro SD (up to 1TB)

Alarm Inputs/Outputs

1 In / 2 Out

Reset

Supported

VIDEO

Video Compression

H.265 HEVC / H.264 / MJPEG, Smart Codec

Resolution

1st: 4096 x 2160 / 3840 x 2160 / 2592 x 1944 / 2592 x 1520
/ 2560 x 1440 / 2304 x 1296 / 1920 x 1080 / 1280 x 720
2nd: 720 x 576 / 704 x 576 (PAL) / 704 x 480 (NTSC) / 640 x
480 / 352 x 288 (PAL) / 352 x 240 (NTSC)
3rd: 1920 x 1080 / 1280 x 720 / 640 x 480 / 352 x 288 (PAL) /
352 x 240 (NTSC) / 320 x 240

Number of Video Streams

3

Frame Rate

Max 25/30 fps

Bit Rate*

100K~16 Mbps

AUDIO

Audio Compression

G.711a/ G.711Mu

Audio Stream

Full duplex

Audio Interface

Line In/Out, Built-in Mic

NETWORK

Ethernet

10 Base-T/100 Base-TX Ethernet (RJ-45)

Supported Web Browsers

Microsoft Edge, Chrome

Supported OS

Microsoft Windows 10, Windows 11

Protocols**

IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, DHCP, NTP, DNS, DDNS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS

Interoperability

ONVIF Profile S/G/T/M

Maximum Users Access

10 Users

Security

Software: Firmware encrypted&Signed, SD card encryption, User account and password protection, HTTPS, IP Filter, Digest authentication, TLS1.2 o­nly, Stream encryption, AES128/256, SSH/Telnet closed, PCIDSS compliance & attestation
Hardware: Secure boot, Secure authentication chipset built-in

Languages Supported

Arabic, Chinese (Simplified), Czech, Dutch, English, French, German, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Spanish, Turkish

EVENTS

Video Analytics

Standard: Motion detection, Scene change
AI Based: Smart motion, Intrusion, Multi loitering, People counter, Face detection, Line crossing detection, Unattended object detection, Missing object detection

Event Type

Analytics alarm, Security alarm, Disk alarm, Recording alarm, Audio detection

Event Linkage

Email, Push notification, SD card recording, Digital output

Region Of Interest

8

Event

Event notification using digital output, SMTP, FTP, MicroSD card

ELECTRICAL

Power Supply

AC24V, DC12V, PoE (IEEE 802.3af) (Class 0)

Power Consumption (Max)

Max 10.5W

MECHANICAL

Dimensions

303 mm × 100 mm × 107 mm (11.9” × 3.94” × 4.21”)

Product Weight

1.24 kg (2.73 lb)

Package Weight

1.60 kg (3.53 lb)

Body Material

Aluminium alloy + Plastic

Color

Hon dark gray + White (RAL9003)

ENVIRONMENTAL

Operating Temperature

Working Temperature:-40°C ~ 60°C (-40°F ~ 140°F) (IR off)

Relative Humidity

Less than 95%, non-condensing

Ingress Protection

IP66, IP67

Impact Resistance

IK10

REGULATORY

Emissions

FCC PART 15, CE (EN 55032), ICES-003

Immunity

CE (EN 50130-4, EN 55035)

Safety

BIS, CE (EN 62368-1)

RoHS

CE(EN 63000)

Country of Origin

India
