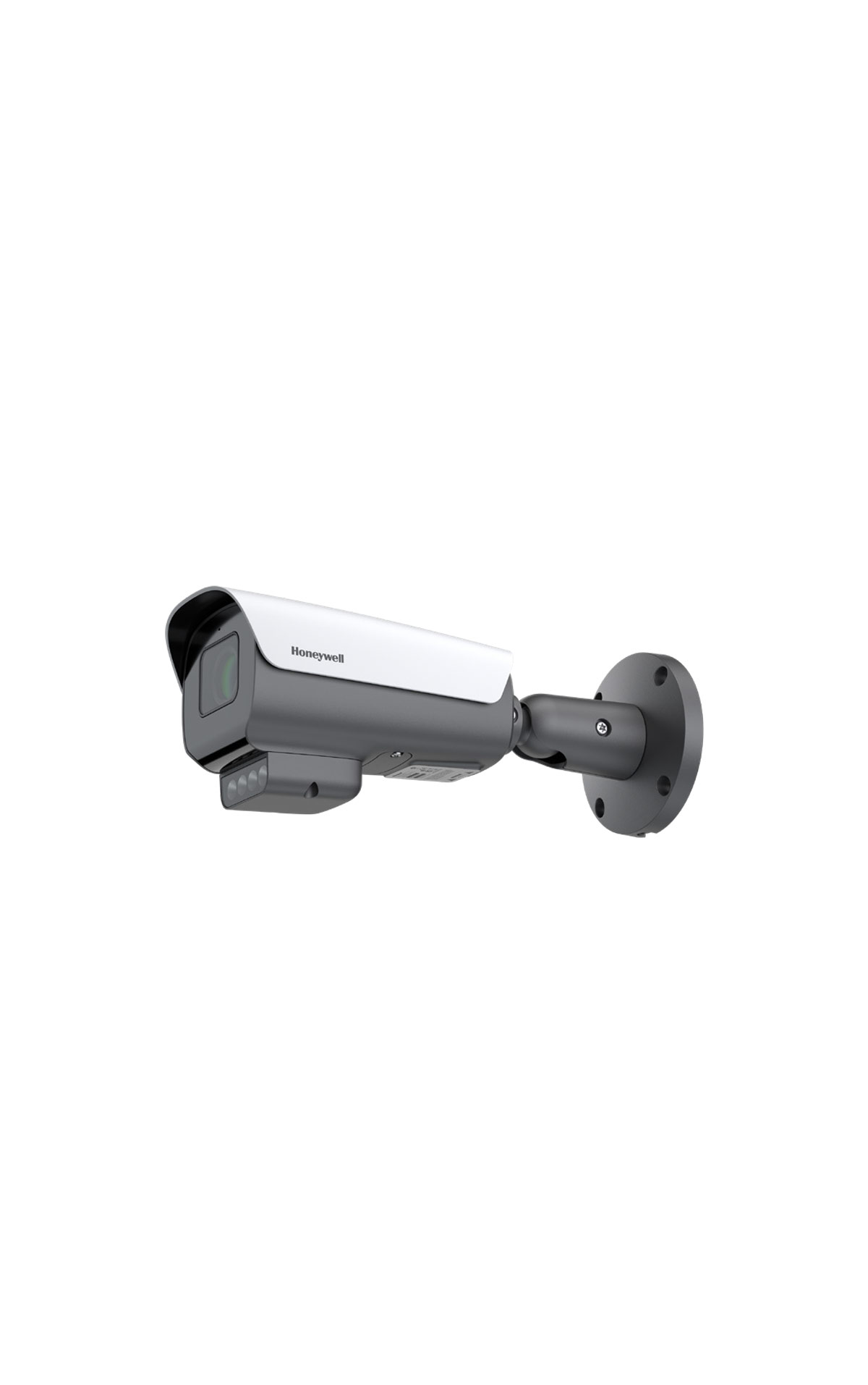

HC35WB5R5 - 5MP IP WDR IR BULLET CAMERA

Model

HC35WB5R5

OPERATIONAL

Video Standard

NTSC/PAL

Scanning System

Progressive

Image Sensor

1/2.8” CMOS

Sensor size (H x V)

5.184 mm x 3.888 mm

Number Of Pixels (H x V)

2592 × 1944

Minimum Illumination (Color/BW)

0.007 Lux/F1.9 (Color,30IRE), 0 Lux/F1.9 (IR o­n)

S/N Ratio

55 dB

Electronic Shutter Speed

1/8 ~ 1/100,000

IR Distance

Up to 100m

IR Light Control

Smart IR /Manual IR/OFF

IR Light Number

10

Day/Night

Auto (ICR) / Color / BW

Backlight Compensation

WDR, BLC, HLC

White Balance

Auto/Tungsten/Fluorescent/Daylight/Shadow/Manual

Gain Control

0~100%

Wide Dynamic Range

130 dB

Noise Reduction

3D DNR

Lens

5-50mm, DC Iris, F1.9, MFZ

Electronic Image Stabilization

Supported

Angle Of View

H:45.92°-6.96°, V:33.96°-5.25°

Privacy Masking

Off / o­n (4 Areas)

Defog

Supported

Local Storage

Micro SD (up to 256 GB)

Alarm Inputs / Outputs

1 In / 2 Out

Pan Range

0°-360°

Tilt Range

0°-90°

Rotation Range

0°-360°

VIDEO

Video Compression

H.265 HEVC/H.264/MJPEG, Smart Codec

Resolution

1st:2592x1944/2592x1520/1920x1080/1280x720 @ 25/30fps (1080P MAX 60fps when WDR off)
2nd:1920x1080/1280x720/704*576(PAL)/704*480(NTSC )/640*480/352*288(PAL)/352*240(NTSC) @ 25/30fps
3rd:640*480/352*288(PAL)/352*240(NTSC)/320*240 @ 25/30fps

Number Of Video Streams

3 (2 for encryption)

Frame Rate*

Main Stream: MAX 30 fps
Second Stream: MAX 30 fps
Third Stream: MAX 30 fps

Bit Rate*

100K~12 Mbps

AUDIO

Audio Compression

G.711

Audio Stream

2-Way, Full duplex

Audio Interface

Line In/Out, Built-in Mic

NETWORK

Ethernet

10 Base-T/100 Base-TX Ethernet (RJ-45)

Supported Web Browsers

Chrome/Edge

Supported OS

Microsoft Windows 10, Microsoft Windows 11

Protocols**

IPv4, IPv6, TCP / IP, HTTP, HTTPS, RTSP / RTP / RTCP, IGMP / Multicast, SMTP, DHCP, NTP, DNS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS

Interoperability

ONVIF Profile G/S/T/M

Maximum Users Access

10 Users

Security

User account and password protection, HTTPS, IP Filter, Digest authentication, TLS1.2 o­nly, Stream encryption, AES128 / 256, SSH / Telnet closed

Languages Supported

English, French, German, Spanish, Italian, Japanese, Portuguese (Brazil), Russian, Arabic, Czech, Korean, Dutch, Polish, Turkish

EVENTS

Video Analytics

People Counter, Multi Loitering, Intrusion, Scene Change, Smart Motion Detection (SMD), Motion Detection, Face Detection, Line Crossing Detection, Unattended Object Detection, Missing Object Detection

Event type

Video motion detection, Alarm input, Recording notification, Scene change

Event linkage

Event notification using digital output, Email and MicroSD card

Region Of Interest

8

ELECTRICAL

Power Supply

DC12V/AC24V/PoE(802.3af)(Class0)

Power Consumption (Max)

Max 11W

MECHANICAL

Dimensions

303 mm × 104.9 mm × 114.6 mm (11.9” × 4.13” x 4.51”)

Product Weight

1.24 kg (2.73 lb)

Package Weight

1.6 kg (3.53 lb)

Body Material

Aluminum and Plastic

Color

Camera Body: Dark Metal Gray
Sunshield: RAL 9003(Signal White)
Front/Lens Facings: Pantone Black

ENVIRONMENTAL

Operating Temperature

Starting Temperature: -40 °C ~ 60 °C (-40 °F ~ 140 °F)
Working Temperature: -40 °C ~ 60 °C (IR OFF)

Relative Humidity

Less than 90 %, non-condensing

Ingress Protection

IP66/IP67

Impact Resistance

IK10

REGULATORY

Emissions

FCC PART 15, CE (EN 55032), Complies with RCM and UKCA

Immunity

CE(EN 50130-4), Complies with RCM and UKCA

Safety

BIS as per IS 13252(Part 1):2010/ IEC 60950-1:2005, UL LISTED TO UL/CSA 62368-1, CE(EN 62368-1), Complies with RCM and UKCA

RoHS

CE(EN 63000),UAE(Cabinet Decree No.10 of 2017)

Country of Origin

India
