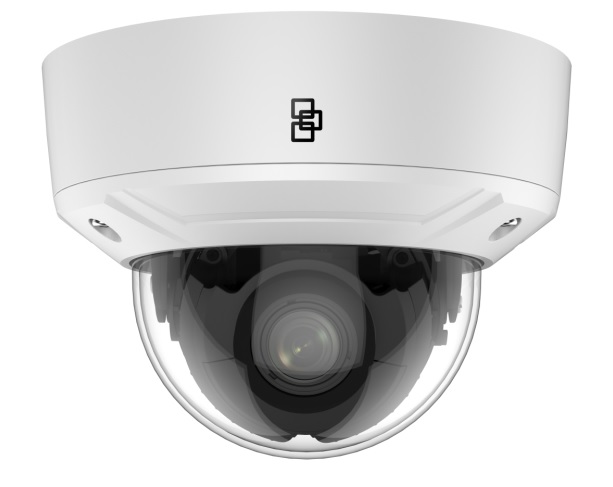

TVGP-M01-0402-DOM-W TRUVISION 4MP

Model

TVGP-M01-0402-DOM-W

General

Technology IP

Video standard NTSC, PAL

Image settings Hallway View, Mirror, ROI (Region Of Interest)

Privacy masking Yes

Software compatibility Milestone XProtect, o­nGuard, TruVision

Navigator, TVRmobile, Web Browser

Camera

Sensor size 1/3"

Max. resolution 4 MP

Sensor scan Progressive

Sensor type CMOS

Shutter time 1/3 to 1/100,000 s

Lighting performance

WDR type True WDR

WDR 120 dB

Digital noise reduction 3D DNR

Day/night True Day/Night

Motorized IR cut filter Yes

Color sensitivity Color: 0.005 Lux @ (F1.6, AGC o­n), 0 Lux with IR

on

Infrared (IR) Yes

IR range Up to 40 m

IR wavelength 850nm

Encoding

Video streams 3

Main stream

compression

H.264, H.265, H.265+

Sub stream compression H.264, H.265, MJPEG

Third stream

compression

H.264, H.265

Video bit rate 32 to 8 Mbps

Main stream resolutions 1280 x 720 (XVGA), 1920 x 1080 (1080p), 2688

x 1520

Sub stream resolutions 640 x 360 (nHD), 640 x 480 (VGA)

Third stream resolutions 1280 x 720 (XVGA), 640 x 360 (nHD), 640 x 480

(VGA)

Max. resolution @ fps 2688 x 1520 @ 25/30 fps

Lens

Lens type Varifocal motorized

Focal length 2.8 to 12 mm, horizontal FoV 95.8° to 29.2°,

vertical FoV 50.6° to 16.4°, diagonal FoV 114.6°

to 33.4°

f-stop F1.6

Auto iris No

Auto focus Yes

Motorized zoom Yes

Network

Network interface RJ-45 10/100 Mbps self-adaptive Ethernet

interface

Integration o­nVIF Profile G, o­nVIF Profile S, o­nVIF Profile T

Supported network

protocols

802.1x, Bonjour, DDNS, DHCP, DNS, FTP, HTTP,

HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS,

RTCP, RTP, RTSP, SMTP, SNMP, TCP/IP, UPnP

Audio

Audio compression G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2,

MP3

Audio in 1 input (line in), two-core terminal block, max.

input amplitude: 3.3 Vpp, input impedance: 4.7

KΩ

Audio out 1 output (line out), two-core terminal block, max.

output amplitude: 3.3 Vpp, output impedance:

100 Ω

Alarm I/O

Alarm inputs 1

Alarm outputs 1 (max. 12 VDC, 30 mA)

Alarm I/O connection Terminal block

Storage

Local storage type Built-in Micro SD/SDHC/SDXC card slot

Max. SD card capacity 256 GB

Video intelligence

Alarm trigger HDD error, HDD full, Invalid login, IP address

conflict, Motion detection, Network

disconnected, Video tampering

ROI Support 1 fixed region for main stream and substream

Smart event Advanced motion detection, Face detection,

Intrusion detection, Line crossing detection,

Motion detection

Intelligence options Person/vehicle detection o­n motion, line crossing

and intrusion detection

Electrical

Operating voltage 12 VDC, 0.88 A, PoE: (802.3af, 36 to 57 V), 0.35

to 0.22 A

Power consumption max. 12.5 W

Physical

Physical dimensions Ø153.3 × 111.6 mm

Ø6.1 × 4.4 in.

Net weight 880 g

1.9 lb.

Shipping weight 1419 g

3.1 lb.

Colour White

Form Factor Dome

Environmental

Vandal proof Yes

Impact rating IK10

Environment Outdoor

Operating temperature -30 to +60°C

-22 to +140°F

Relative humidity <95% noncondensing

IP rating IP67

Regulatory

Compliancy CE, FCC, REACH, RoHS, UL, WEEE

Compatible products

Category Reference Description

Brackets &

Mounts

TVD-BB4-W TruVision back box for M Series varifocal

dome IP cameras, white

Brackets &

Mounts

TVD-BB5 Back box for UltraSync Wi-Fi dome

camera, white

Brackets &

Mounts

TVD-CB9-W TruVision Cup Base (6 inch) for S6

motorized dome cameras. Use with TVDSNB, TVD-PPB, TVD-CBW (white)

Brackets &

Mounts

TVD-CBW-W TruVision wall mount bracket

compatible with white TruVision cup

bases TVD-CBx-W

Brackets &

Mounts

TVD-VFM3-W TruVision flush mount for M Series

varifocal dome IP cameras, white

Camera HousingTVD-BS-5S TruVision Dome Bubble Spare, Smoked,

for motorized lens domes
