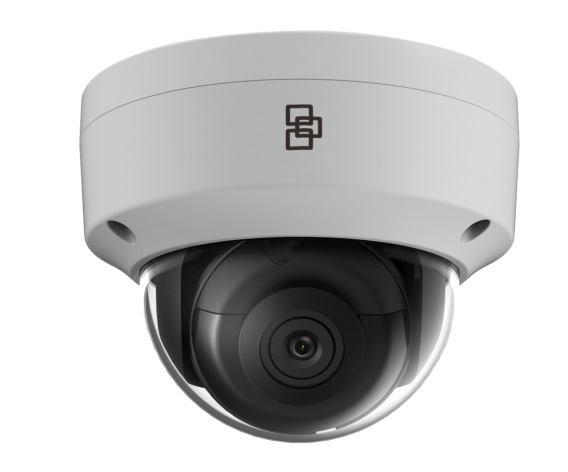

TVGP-M01-0801-DOM-G TRUVISION 8MP/4K

Model

TVGP-M01-0801-DOM-G

General

Technology IP

Video standard NTSC, PAL

Image settings Hallway View, Mirror, ROI (Region Of Interest)

Privacy masking Yes

Software compatibility Milestone XProtect, o­nGuard, TruVision

Navigator, TVRmobile, Web Browser

Camera

Sensor size 1/2.8"

Max. resolution 8 MP (4K)

Sensor scan Progressive

Sensor type CMOS

Shutter time 1/3 to 1/100,000 s

Lighting performance

WDR type True WDR

WDR 120 dB

Digital noise reduction 3D DNR

Day/night True Day/Night

Motorized IR cut filter Yes

Color sensitivity Color: 0.005 Lux @ (F1.6, AGC o­n), 0 Lux with IR

on

Infrared (IR) Yes

IR range Up to 30 m

IR wavelength 850nm

Encoding

ideo streams 3

Main stream

compression

H.264, H.265, H.265+

Sub stream compression H.264, H.265, MJPEG

Third stream

compression

H.264, H.265

Video bit rate 32 to 16 Mbps

Main stream resolutions 1280 x 720 (XVGA), 1920 x 1080 (1080p), 2688

x 1520, 3200 x 1800, 3840 x 2160

Sub stream resolutions 640 x 360 (nHD), 640 x 480 (VGA)

Third stream resolutions 1280 x 720 (XVGA), 1920 x 1080 (1080p), 640 x

360 (nHD), 640 x 480 (VGA)

Max. resolution @ fps 3840 x 2160 @ 20 fps

Lens

Lens type Fixed

Focal length 2.8 mm, horizontal FoV 107°, vertical FoV 57°,

diagonal FoV 128°

f-stop F1.6

Auto iris No

Network

Network interface RJ-45 10/100 Mbps self-adaptive Ethernet

interface

Integration o­nVIF Profile G, o­nVIF Profile S, o­nVIF Profile T

Supported network

protocols

802.1x, Bonjour, DDNS, DHCP, DNS, FTP, HTTP,

HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS,

RTCP, RTP, RTSP, SMTP, SNMP, TCP/IP, UPnP

Audio

Audio compression G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2,

MP3, PCM

Audio in 1 input (line in), two-core terminal block , max.

input amplitude: 3.3 Vpp, input impedance: 4.7

KΩ

Audio out 1 output (line out), two-core terminal block ,

max.output amplitude: 3.3 Vpp, output

impedance: 100 Ω

Alarm I/O

Alarm inputs 1

Alarm outputs 1 output (max. 12 VDC, 30 mA)

Alarm I/O connection Terminal block

Storage

Local storage type Built-in Micro SD/SDHC/SDXC card slot

Max. SD card capacity 256 GB

Video intelligence

Alarm trigger HDD error, HDD full, Invalid login, IP address

conflict, Motion detection, Network

disconnected, Video tampering

ROI Support 1 fixed region for main stream and substream

Smart event Advanced motion detection, Face detection,

Intrusion detection, Line crossing detection,

Motion detection

Intelligence options Person/vehicle detection o­n motion, line crossing

and intrusion detection

Electrical

Operating voltage 12 VDC, 0.5 A, PoE (802.3af, 36 to 57 V), 0.2 to

0.15 A

Power consumption max. 7.5 W

Physical

Physical dimensions Ø110.8 × 84.7 mm

Ø4.4 × 3.3 in.

Net weight 530 g

1.1 lb.

Shipping weight 720 g

1.6 lb.

Colour Grey

Material Aluminium

Form Factor Dome

Environmental

Vandal proof Yes

Impact rating IK10

Environment Outdoor

Operating temperature -30 to +60°C

-22 to +140°F

Relative humidity <95% noncondensing

IP rating IP67

Regulatory

Compliancy CE, FCC, REACH, RoHS, UL, WEEE

Compatible products

Category Reference Description

Brackets &

Mounts

DR-RWM-AD TruVision Adapter for the TruVision

Dome to use o­n the DR wall-mount

bracket

Brackets &

Mounts

TVD-BB1 TruVision dome back box used with

TVD-11xx/55xx/56xx series plastic mini

domes

Brackets &

Mounts

TVD-CB3 TruVision Dome 3 inch Cup Base for

TruVision varifocal turret cameras

Brackets &

Mounts

TVD-CBW TruVision wall mount bracket

compatible with TruVision Cup Bases

TVx-CBx

Brackets &

Mounts

TVD-M-PMA-SS TruVision Pole Mount Adaptor, stainless

steel

Brackets &

Mounts

TVD-M2-WM TruVision indoor dome wall mount

Brackets &

Mounts

TVD-PPB TruVision Dome Pendant Ceiling mount

bracket for TVD-CBx, TVF-CBM

Brackets &

Mounts

TVD-SNB TruVision Dome Swan Neck bracket for

TVD-CBx and TVF-CBM cup bases

Camera HousingTVD-BS-3S TruVision Dome Bubble Spare, Smoked,

for varifocal domes
