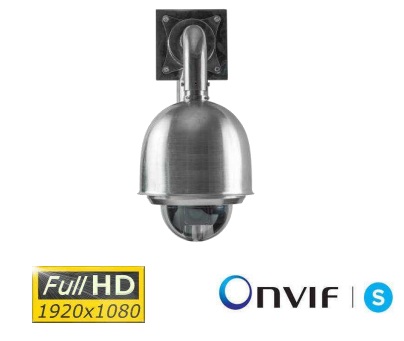

CAMERA PTZ CHỐNG CHÁY NỔ ASPD943

Model	ASPD943
CAMERA	Image Sensor	1/2.8" progressive scan CMOS
	Min. Illumination	Color: 0.005 Lux @ (F1.6, AGC o­n) B/W: 0.001Lux @ (F1.6, AGC o­n)
	White Balance	Auto/Manual/ATW (Auto-tracking White Balance) /Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
	Gain	Auto/Manual
	Shutter Time	50Hz: 1/1 s to 1/30,000 s; 60Hz: 1/1 s to 1/30,000 s
	Day & Night	IR Cut Filter
	Digital Zoom	16×
	Privacy Mask	24 programmable privacy masks
	Focus Mode	Auto/Semi-automatic/Manual
	WDR	120 dB WDR
	Focal Length	4.8 mm to 153 mm, 32× optical zoom
	Zoom Speed	Approx. 5.6 s (optical lens, wide-tele)
	Field of View	Horizontal field of view: 55.6° to 2.04° (Wide-Tele) Vertical field of view: 32.4° to 1.14° (Wide-Tele) Diagonal field of view: 63° to 2.34° (Wide-Tele)
	Working Distance	10 mm to 1500 mm (wide-tele)
	Aperture Range	F1.2 to F4.4
PTZ	Construction	316L Stainless Steel
	Finishing	Polished
	Ingress Protection	IP68
	Voltage	24 VAC and Hi-PoE
	Power	Max.: 22 W
	Movement Range (Pan)	360° endless
	Pan Speed	Configurable, from 0.1°/s to 250°/s, Preset speed: 300°/s
	Movement Range (Tilt)	From -5° to 90° (auto-flip)
	Tilt Speed	Configurable, from 0.1°/s to 150°/s Preset Speed: 200°/s
	Proportional Zoom	Support
	Presets	300
	Patrol Scan	8 patrols, up to 32 presets for each patrol
	Pattern Scan	4 pattern scans, record time over 10 minutes for each scan
	Power-off Memory	Support
	Park Action	Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan /Panorama Scan
	3D Positioning	Support
	PTZ Position Display	Support
	Preset Freezing	Support
	Scheduled Task	Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output
COMPRESSION STANDARD	Video Compression	Main Stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG
	H.264 Type	Baseline Profile/Main Profile/High Profile
	H.264+	Support
	H.265 Type	Baseline Profile/Main Profile/High Profile
	H.265+	Support
	Video Bitrate	32 Kbps to 16384 Kbps
	Audio Compression	G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
	Audio Bitrate	G.711alaw/G.711ulaw: 64 Kbps G.722.1/G.726: 16 Kbps MP212/PCM: 32 Kbps/64 Kbps/128 Kbps
	SVC	Support
SMART FEATURES	Basic Event	Motion Detection, Alarm Input, Alarm Output, Video Tampering Detection, Exception
	Smart Event	Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection
	Smart Record	ANR (Automatic Network Replenishment), Dual-VCA
	ROI	Main stream, sub-stream, and third stream respectively support four fixed areas.
	Auto-Tracking	Support
IMAGE	Max. Resolution	1920 × 1080
	Main Stream	50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 50fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
	Sub-Stream	50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
	Third Stream	50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
	Image Enhancement	HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus
NETWORK	Network Storage	Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR
	Alarm Linkage	Alarm actions, such as Notify Surveillance Center, Upload to FTP, Send Email, Trigger Recording, Recording Linkage, and Alarm Input, etc.
	Protocols	IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
	API	Open-ended, support o­nVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform
	Simultaneous Live View	Up to 20 channels
	User/Host	Up to 32 users 3 levels: Administrator, Operator and User
	Security Measures	User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
	Client	iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
	Web Browser	IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51
INTERFACE	Alarm Interface	2-ch alarm input and 1-ch alarm output
	Audio Interface	1-ch audio input and 1-ch audio output
	Network Interface	1 RJ45 10 M/100 M Ethernet, Hi-PoE
ENVIRONMENT	Air Pressure	86 ~ 106KPa
	Temperature	-25°C to +60°C
	Humidity	≤95%RH (+25°C)
WEIGHT & DIMENSION	Net weight (with bracket)	13kg
	Dimension	Φ213 × 570mm
