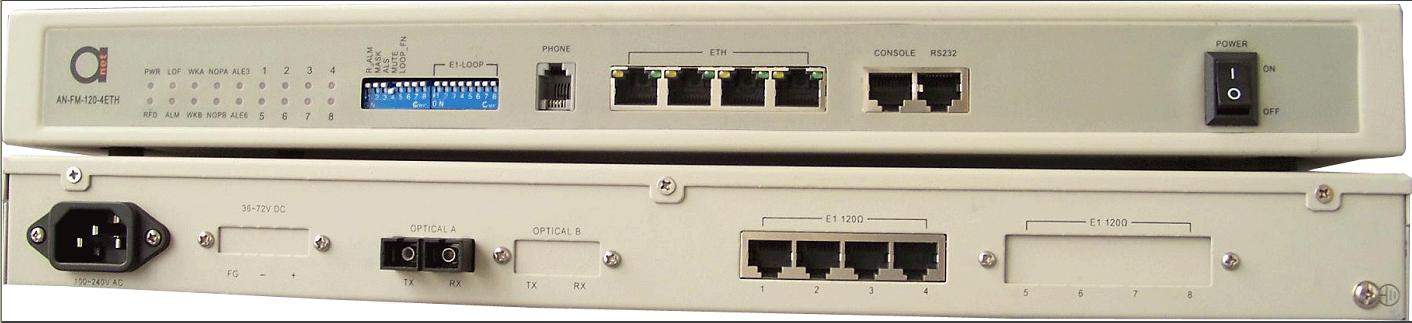

BỘ GHÉP KÊNH QUANG 4XE1 G.703/ 1 CỔNG ETHERNET

E1 interface parameter

Channel capacity: 4 Channels
Bit Rate: 2.048 Mb/s ±50 ppm
Line Code: HDB3
Line Impedance: 120 Ohm / 75 Ohm
Connector: RJ-45 or BNC
Pulse Shape: ITU-T G.703
Jitter Performance: ITU-T G.823

Ethernet interface:

Interface Rate: 10/100Mbps
Interface character: match IEEE802.3, IEEE802.1 Q
Connector: RJ45

Optical interface parameter

Optical wavelength: 850/1310nm for multi-mode fiber, 1310/1550nm for single-mode fiber
Optical interface: SC/FC/ST (Optional)
Transceiver module: > -6dBm
Optical receiver sensitivity: <-36(BER<10)
Receive range: >-30dB
Transmission distance: multi-mode 2 Km, single-mode 20/ 40 / 80 / 120 Km, WDM versions for any distance available

Power

DC: -48V (-36 to -72V); +24 V (Optional)
AC:  90 to 260 VAC ; 47 ~ 63Hz
Power Interface: DC power terminal/AC socket
Power Consumption: 10 W maximum

Working environment

Operating temperature: 0 to 50°C
Storage temperature: -20  to +70°C
Relative humidity: 5% to 90% (25°C no condense)

Ordering information

AN-FM-120/ETH-MM

4xE1 and 10/100 Ethernet signal over multi-mode fiber 2km SC/ST

AN-FM-120/ETH-S20

4xE1 and 10/100 Ethernet signal over single-mode fiber 20km SC/ST

AN-FM-120/ETH-S40

4xE1 and 10/100 Ethernet signal over single-mode fiber 40km SC/ST

AN-FM-120/ETH-S80

4xE1 and 10/100 Ethernet signal over single-mode fiber 80km SC/ST

AN-FM-120/ETH-S120

4xE1 and 10/100 Ethernet signal over single-mode fiber 120km SC/ST
