BỘ CHUYỂN ĐỔI QUANG SANG ETHERNET

Product Name

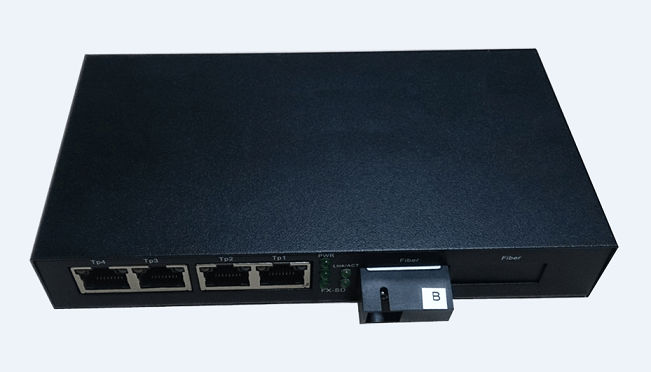

1 x Fiber Port + 2 & 4 x 10/100/1000 UTP port fiber optic media converter

Operating standards

IEEE802.3z/AB，10/100/1000Base-T and 1000Base-SX/LX

MAC address table

1K

Frame buffer memory

1MKb

Fiber optic media convertering capacity

12G

Connector

UTP：RJ-45，10/100/1000Mbps；Fiber: 1000Mbps

Cable

UTP：Cat.5 or 6 UTP（the max distance up to 100m）

Multimode Fiber：50/125，62.5/125μm

Singlemode Fiber：8/125，8.7/125，9/125μm（the max distance up to 10～100 km）

Flow control

Full Duplex: IEEE802.3x flow control；

Half Duplex: back pressure flow control

LED

PWR，F1 Link/Act，F2 Link/Act；TP1～TP4 Link/Act，TP1～TP4 100，TP1～TP4 1000

Power Requirement

AC220V(100-240V)，50～60Hz； DC：5V，2A

Ambient Temperature

0 ～ +50℃

Storage Temperature

-20 ～ +70℃

Humidity

5% ～ 90%

Dimensions

25(high)×180(width)×100(length)mm

Ordering information

AN-UMGSM-AS-2TX-MM-850

2 port UTP Gigabit Ethernet 10/100/1000Mbps Media Converter 500m (850 nm) SC (Multimode)

AN-UMGSM-AS-2TX-MM-1310

2 port UTP Gigabit Ethernet 10/100/1000Mbps Media Converter 2km (1310 nm) SC (Multimode)

AN-UMGSM-AS-2TX-XX

2 port UTP Gigabit Ethernet 10/100/1000Mbps Media Converter XX=(10/20/40/60/80/100/120) km SC (Single Mode)

AN-UMG130 (1490) -AS-2TX-XX

2 port UTPGigabit Ethernet 10/100/1000Mbps Media Converter XX=(10/20/40/60/80/100/120) km SC (Single Mode Single Fiber WDM,
Tx= 1310 nm (1490 nm)

AN-UMG150-AS-2TX-XX

2 port UTP Gigabit Ethernet 10/100/1000Mbps Media Converter XX=(10/20/40/60/80/100/120) km SC (Single Mode Single Fiber WDM,
Tx= 1550 nm)

AN-UMGSM-AS-4TX-MM-850

4 port UTP Gigabit Ethernet 10/100/1000Mbps Media Converter 500m (850 nm) SC (Multimode)

AN-UMGSM-AS-4TX-MM-1310

4 port UTP Gigabit Ethernet 10/100/1000Mbps Media Converter 2km (1310 nm) SC (Multimode)

AN-UMGSM-AS-4TX-XX

4 port UTP Gigabit Ethernet 10/100/1000Mbps Media Converter XX=(10/20/40/60/80/100/120) km SC (Single Mode)

AN-UMG130 (1490) -AS-4TX-XX

4 port UTPGigabit Ethernet 10/100/1000Mbps Media Converter XX=(10/20/40/60/80/100/120) km SC (Single Mode Single Fiber WDM,
Tx= 1310 nm (1490 nm)

AN-UMG150-AS-4TX-XX

4 port UTP Gigabit Ethernet 10/100/1000Mbps Media Converter XX=(10/20/40/60/80/100/120) km SC (Single Mode Single Fiber WDM,
Tx= 1550 nm)
