BỘ CHUYỂN ĐỔI SFP SANG SFP

Module name

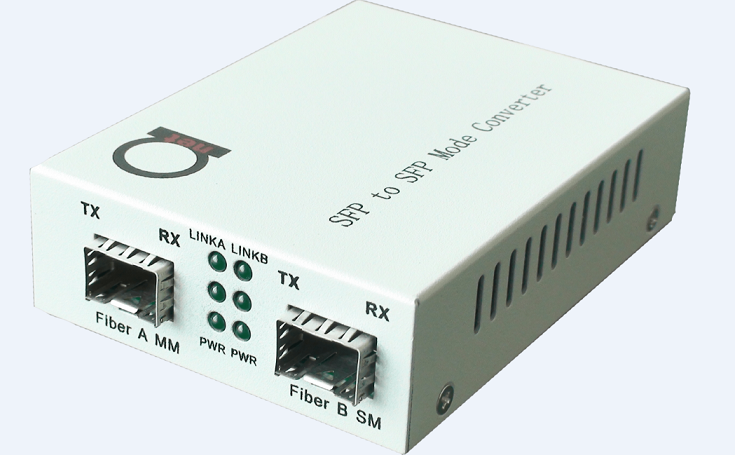

SFP to SFP media converter

Feature

·Conversion of optical signals can be carried out between multi/multimode optical
fiber, between single/multimode fibers, or between single/single mode fibers when
the both SFP modules have same speed.

·Supporting conversion of 2～1250Mbps optical digital signals.

·Conversion speed fast, less delay, high efficiency

·Compliant with IEEE 802.3 10BASE-T, 802.3u 100BASE-TX, 100BASE-FX, 1000Base-FX/TX and 2.5G Ethernet Standards

·If you use ATM/SDH or any other standards – if standard SFP module is used, also support these standard as well.

·Provides 2 slot (sockets) for universal SFP modules, all major SFP brands are supported;

·Supporting hot-swap of SFP modules;

·Front panel Diagnostic LED Indications;

·Can be installed in AN-CH05 chassis – universal type casing

·Supports Jumbo Frames, MPLS packed size, brand new chipset is used

Specification

Interfaces: SFP sockets.
Transmission Rate: 2～2.5Gbps
Power : External or Internal switching power: AC100～240V/DC5V or 48VDC supported
Ambient temperature：0 ～ +60℃
Storage temperature：-20 ～ +70℃
Humidity：5% ～ 90%
CE/FCC/ROHS certification
Diagnostic LED’s: Link A, Link B TX/RX, Power, Activity
Dimensions: 70.5mm(L)X94mm(W)X26.5mm(H)

Ordering information

AN-UM-2-SMC-AS

SFP to SFP media converter, supporting modules 155M (i.e fast ethernet), 1.25G (i.e Gigabit Ethernet) or 2.5G, AC or DC power options
