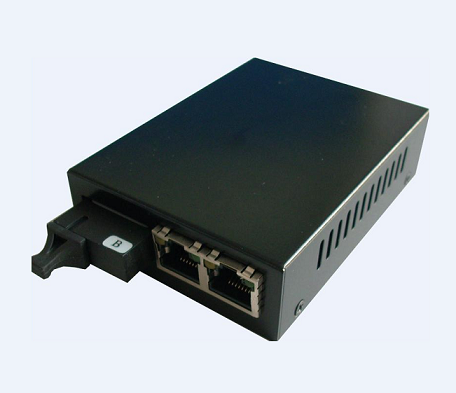

BỘ CHUYỂN ĐỔI ETHERNET SANG QUANG

Module name

1 Fiber port & 2 x 10/100Base TX converter (1 FX + 2 TX)

Feature

·2 ports 10/100Mbps and full/half duplex automatically configure in TP port.

·Ethernet to fiber converter is compliant with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX, 100Base-FX Standards

·MDI/MDI-X Auto Negotiation

·RS-232 port for Hyperterminal or any other terminal software management;

·Tagged dot1Q or port based VLAN’s supported at TX ports;

·LED Indicators: POWER, FX LINK/ACT, 100, TP LINK/ACT, FDX/COL.

·Supports LLR (Link Loss Return) for FX Port & LFP functions

·Wall-Mountable & Standalone

·FCC Class A & CE approved

Wavelength

Multi-mode: 1310nm; Single-mode: 1310nm, WDM bidi versions available, single fiber.

Fiber cable(m)

8.3/125, 8.7/125, 9/125 or 10/125 single-mode

Maximum distance: Multimode;2km(Default), Single-mode;20km/(Default)40km/60km/80km/100km/120km
Power supply: 100 to 240VAC 50 to 60Hz
Input power: 2A +5V,
Dimensions: 70.5mm(L)X94mm(W)X26.5mm(H)

Environment

Relative humidity: 5% to 90%
Operating temperature: 0 to 60
Storage temperature: -20 to 70

Ordering Information

AN-UM-2TX100-1

10/100 Base-TX/FX Bridge Converter 2Km SC Connector (Multimode)

AN-UM-2TX100-2

10/100 Base-TX/FX Bridge Converter 2Km ST Connector (Multimode)

AN-UM-2TX100SM-XX

10/100 Base-TX/FX Bridge Converter XX=(20/40/60/80/100/120) Km SC Connector (Single mode)

AN-UM-2TX130-XX

10/100 Base-TX/FX Bridge Converter XX=(20/40/60) Km SC Connector (TX=1330 nm)

AN-UM-2TX150-XX

10/100 Base-TX/FX Bridge Converter XX=(20/40/60) Km SC Connector (TX=1550 nm)
